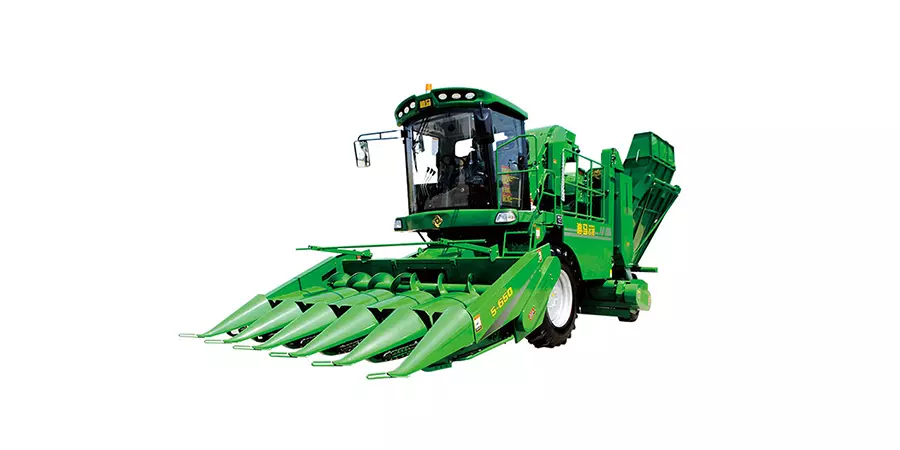

Hydraulic systems are critical in corn machines (planters, harvesters, silage equipment, and processing units) to power functions like row-unit adjustment, header height control, grain augers, and chopping mechanisms. Below is a detailed breakdown of hydraulic products used in corn machines, along with high-market-share brands and models:

1. Hydraulic Motors

Role: Drive augers, choppers, conveyor belts, and feed mechanisms.
Types:

    • Orbital Motors: Compact, low-speed/high-torque for precise control.

    • Piston Motors: High-power for heavy-duty harvesting.

High-Market-Share Models:

    • Danfoss OMM/OMV Series (e.g., OMM 160): Compact orbital motors for grain augers.

    • Eaton Char-Lynn 2000 Series (e.g., 211-1020): Robust motors for chopping and feed systems.

    • Parker Hannifin F11 Series: High-torque motors for corn header drives.

    • Bucher Hydraulics QXM Series: Piston motors for high-power applications.

2. Hydraulic Pumps

Role: Generate fluid flow to power motors and cylinders.
Types:

    • Gear Pumps: Affordable for mid-pressure systems (e.g., planter hydraulics).

    • Piston Pumps: High-pressure for harvesters and silage equipment.

High-Market-Share Models:

    • Bosch Rexroth A10VO Series (e.g., A10VO 28): Axial piston pumps for combine harvesters.

    • Parker PGP Series (e.g., PGP505): Gear pumps for planters and seeders.

    • Eaton 46 Series (e.g., 72456): Variable displacement pumps for adaptive power needs.

3. Hydraulic Cylinders

Role: Adjust header height, control row-unit downforce, and operate grain tank covers.
Types:

    • Double-Acting Cylinders: For precision adjustments (e.g., header lift).

    • Telescopic Cylinders: Extended reach for large harvesters.

High-Market-Sharing Models:

    • Parker Hannifin 2H/3H Series: Durable cylinders for heavy loads.

    • Eaton HSL Series (e.g., HSL-203): High-strength cylinders for header control.

    • Wipro Hydraulics Custom Cylinders: Tailored for corn planter row units.

4. Hydraulic Valves

Role: Control flow direction, pressure, and speed for actuators.
Types:

    • Directional Control Valves: Manage functions like header lift or auger start/stop.

    • Pressure Relief Valves: Protect systems from overload.

High-Market-Share Models:

    • HydraForce SV08/SV10 Series: Compact solenoid valves for automated control.

    • Sun Hydraulics DGMP Series: Manually operated valves for simple systems.

    • Parker D1VW Series: Proportional valves for precision adjustments.

5. Hydraulic Hoses & Fittings

Role: Connect components in dusty, high-vibration environments.
Key Brands/Models:

    • Gates UltraFlex II Hoses: Abrasion-resistant for field use.

    • Parker Hannifin 429HT Hoses: High-temperature tolerance for harvesters.

    • Dixon Quick-Disconnect Fittings: For rapid maintenance.

6. Hydraulic Power Packs

Role: Compact units for standalone corn processing equipment (e.g., silage cutters).
Key Models:

    • Hyvair HPU Series: Lightweight units for mobile applications.

    • Bailey Hydraulics Custom Power Packs: For large combines and planters.

7. Hydraulic Filters & Reservoirs

Role: Maintain fluid cleanliness in dusty conditions.
Key Models:

    • Donaldson Hydraulic Filters (e.g., P550597): High-efficiency for combine harvesters.

    • Parker Hannifin Spin-On Filters: Easy replacement in planters.

8. Hydraulic Manifolds

Role: Centralize valve mounting for compact systems.
Key Models:

    • Sun Hydraulics Custom Manifolds: Modular designs for complex circuits.

    • Bosch Rexroth HMB Series: Pre-engineered for corn machinery.

Top Brands in Corn Machine Hydraulics

    1. Eaton (Char-Lynn motors, HSL cylinders).

    2. Parker Hannifin (PGP pumps, 2H cylinders).

    3. Bosch Rexroth (A10VO pumps, HMB manifolds).

    4. Danfoss (OMM motors for compact systems).

    5. HydraForce (SV valves for precision control).

Example Hydraulic System in a Corn Combine Harvester

    • Motor: Danfoss OMM 160 (grain auger drive).

    • Pump: Bosch Rexroth A10VO 28 (main hydraulic power).

    • Valve: HydraForce SV10-22 (header lift control).

    • Cylinder: Eaton HSL-203 (header height adjustment).

Considerations

  • Application-Specific Needs:

    • Planters: Require low-pressure gear pumps and precise cylinders for row-unit downforce.

    • Harvesters: Demand high-pressure piston pumps and robust motors for chopping.

  • Durability: Components must withstand dust, moisture, and heavy loads.

  • Customization: Brands like Hyvair and Wipro offer tailored solutions for OEMs like John Deere or Case IH.

For specific corn machinery applications, consult manufacturers such as John Deere, CLAAS, or AGCO, which integrate these hydraulic components into their equipment.
