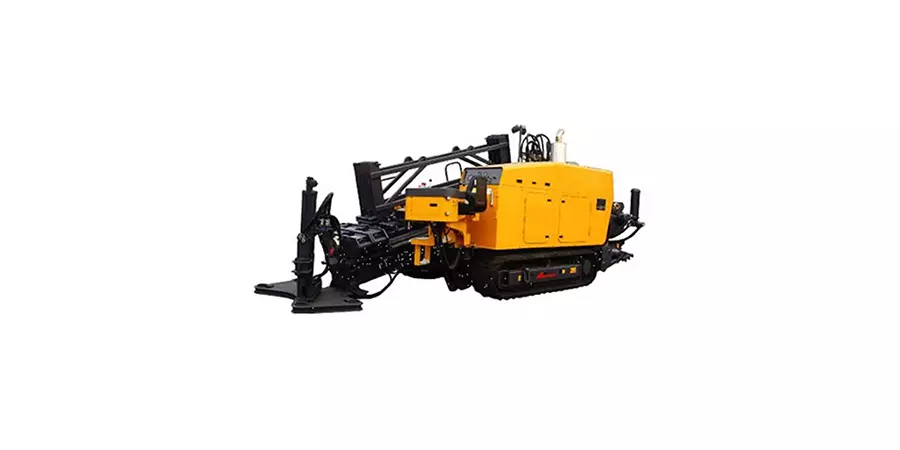

Hydraulic Products Used in Horizontal Directional Drilling (HDD) Rigs
Horizontal Directional Drilling (HDD) rigs rely on hydraulic systems to perform drilling, steering, pipe pulling, and mud circulation. Below is a detailed breakdown of key hydraulic components and their roles in HDD operations:

**1. Main Hydraulic Power Units (HPUs)

• Function: Generate and regulate hydraulic power for all systems.

• Components:

• Deliver 250–600 L/min flow at 25–35 MPa pressure.

• Load-sensing (LS) technology optimizes energy efficiency.

• Variable Displacement Pumps (e.g., Bosch Rexroth A10VSO, Parker PV Plus):

• Hydraulic Reservoir: Large-capacity tank with air breathers and contamination control.

• Filtration System: High-efficiency filters (βₙ≥1,000 @ 10 μm) to protect sensitive components.

**2. Thrust/Pullback System

• Hydraulic Cylinders:

• Thrust force: 50–500 kN (varies with rig size).

• Stroke length: 3–12 meters for large rigs.

• Function: Provide thrust force to push the drill string into the ground and pullback force to retract the pipeline.

• Key Specs:

• Technology: Proportional valves for smooth speed control during push/pull cycles.

• Rotary Drive Hydraulic Motors:

• High-Torque Low-Speed Motors (e.g., Danfoss 90 series): Torque up to 30,000 Nm, speed 0–150 RPM.

• Swivel Motors: Enable continuous rotation while feeding drill rods.

• Function: Rotate the drill string for cutting and steering.

• Types:

**3. Mud Pump Systems

• Hydraulic Mud Pumps:

• Flow rates: 200–2,000 L/min.

• Pressure: 10–20 MPa for deep or hard soil conditions.

• Triplex plunger pumps with ceramic-coated components for abrasion resistance.

• Function: Pump drilling fluid (bentonite slurry) to cool the drill bit, remove cuttings, and stabilize the borehole.

• Key Features:

• Mud Mixing and Recycling Hydraulics:

• Automated valves and agitators driven by hydraulic motors for consistent slurry viscosity.

**4. Steering and Guidance Systems

• Steering Sled Hydraulic Actuators:

• Function: Adjust the drill head’s angle for directional control.

• Technology: Electro-hydraulic servo valves for ±1° steering accuracy.

• Downhole Tool Power:

• Hydraulic circuits supply power to downhole tools (e.g., bentonite injection nozzles, sonde housing).

**5. Rod Handling and Clamping

• Rod Loader Hydraulics:

• Hydraulic grippers with force feedback to prevent rod slippage.

• Telescopic cylinders for rod magazine positioning.

• Function: Automatically load and unload drill rods.

• Components:

• Pipe Clamping Systems:

• Clamping force: 50–200 kN.

• Integrated pressure relief to avoid overloading.

• Hydraulic Clamps: Secure the drill string during connections.

• Key Specs:

**6. Anchoring and Stabilization

• Outrigger Hydraulic Cylinders:

• Function: Stabilize the rig during drilling and pullback.

• Design: Double-acting cylinders with lock valves for load holding.

• Track Drive Hydraulics (for self-propelled rigs):

• Hydraulic motors (e.g., axial piston motors) power crawler tracks for mobility.

**7. Auxiliary and Safety Systems

• Cooling Systems:

• Hydraulic oil coolers (air- or water-cooled) maintain oil temperature ≤60°C.

• Emergency Shutdown (ESD) Valves:

• Hydraulically actuated valves to isolate systems in case of failure.

• Accumulators:

• Store energy for rapid response in critical operations (e.g., emergency rod clamping).

Key Technologies

1. Closed-Loop Control:

• Real-time feedback adjusts thrust/pullback force and rotation speed based on soil conditions.

2. Hybrid Power Systems:

• Electric-hydraulic hybrids reduce fuel consumption (e.g., Tier 4 Final-compliant rigs).

3. Telematics Integration:

• IoT sensors monitor hydraulic parameters (pressure, temperature) for predictive maintenance.

Common Brands and Components

Maintenance Challenges

• Contamination Control: Drilling mud and soil particles require frequent filter changes.

• Seal Wear: High-pressure rod seals in thrust cylinders need regular inspection.

• Heat Management: Overheating during prolonged drilling cycles can degrade oil quality.

Summary

Horizontal Directional Drilling rigs depend on a robust hydraulic ecosystem to achieve precision in underground pipeline installation. From high-torque rotary drives to intelligent steering actuators, each component is engineered for reliability in challenging environments. Innovations in energy efficiency and digital integration are driving the next generation of HDD rigs, enabling faster, deeper, and more accurate installations.
