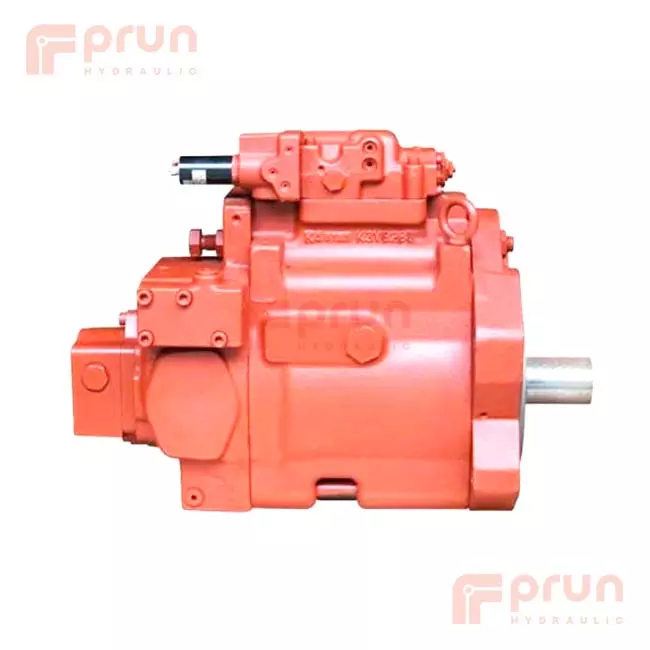

KAWASAKI K3VG63 K3VG112 K3VG180 K3VG280 Axial Piston Pumps
PUMP DETAILS:
The K3VG Series Swash Plate Type Axial Piston Pumps are designed to specifically satisfy the industrial open circuit market where noise, efficiency, controllability and extended pump life are considered to be essential. K3VG Pumps are available in nominal displacements ranging from 3.84 to 34.2 in3/rev (63 to 560 cm3/rev) with various pressure, flow, and combination control options. Key features of K3VG Pumps include 1. Reliable, High Pressure and Long Life Design - The K3VG Series Design is based on the K3V Mobile Series Pump where more than 700,000units have been supplied to the Construction Machinery Market. The K3VG pump incorporates high load bearings and a friction free contacting mechanism for the piston-shoes. This design has resulted in a pump with high reliability and long service life. 2. Low Noise - The unique, compact and rigid housing construction in addition to the semi-cylindrical pillow type swash-plate and its anti-vibration supporting mechanism has significantly reduced noise levels. 3. High Efficiency and High Self-Priming Capability - K3VG Pumps encompass a spherical shaped valve plate design and improved hydraulic balancing which provide stable cylinder rotation, thus achieving high efficiency even in low-pressure, low-speed operating conditions. The spherical shaped valve plate also enables a shortened radius of the cylinder ports, which reduces the peripheral velocity and pressure-drop. This feature significantly improves the self-priming capability of the pump. 4. Extensive Range of Control Options - A large variety of hydromechanical and hydroelectric control methods are available. Displacement, pressure cutoff, horsepower control, and various combinations of these controls are available. 5. Auxiliary Gear Pump - Various sizes of optional gear pumps can be provided. Therefore, no separate pump unit is necessary as a control pressure source or system medium-pressure source and possible to attach high pressure gear pump. Hydraulic units can thus be made compact and more economical.
BENEFITS:
1, Reliable, High Pressure, Long Life Modular Design.
2, Low Noise and High Efficiency.
3, Self-Compensating piston return mechanism.
4, Extensive Range of Highly Responsive Control Options.
5, Auxiliary Gear Pump Option.
6, Rated Pressure 350 Bar.
7, Peak Pressure 400 Bar.
8, High Continuous Power Rating.
9, Fully Balanced Spherical Valve Plate.
10, Infinite displacement control.
11, Hydrostatically Balanced Swash Plate Support.
12, High Load Capacity Bearings.
