K3VL28 K3VL45 K3VL60 K3VL80 K3VL112 K3VL140 K3VL200 KAWASAKI Pump
PUMP DETAILS:

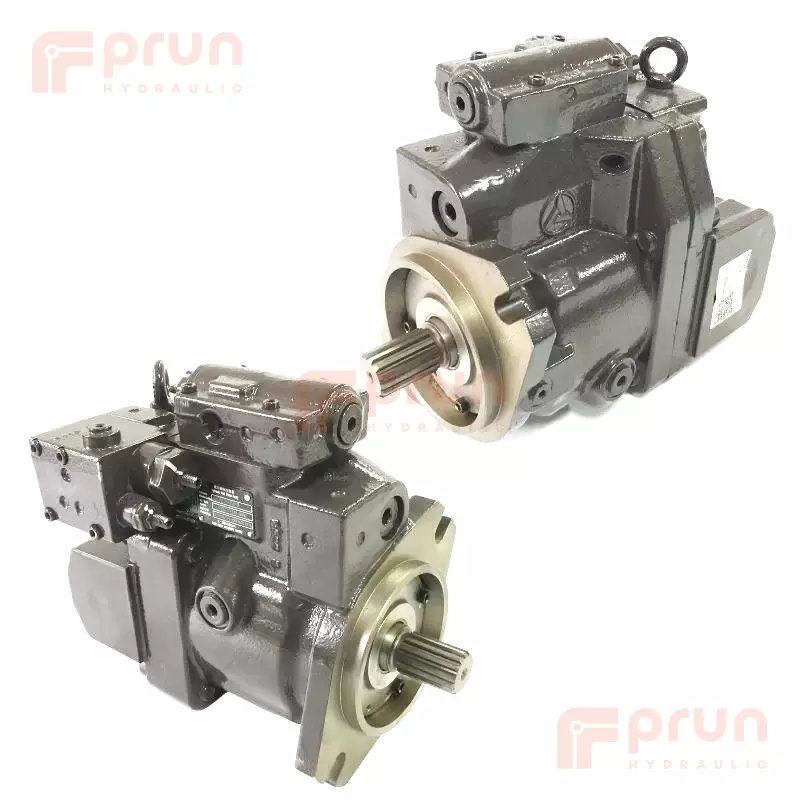

The K3VL series is a variable displacement axial piston pump with a swash plate design. It is widely used in excavators and other engineering machinery and equipment. All spare parts of the entire pump are produced by our own factory, so we are very competitive in terms of price. The K3VL series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile and industrial applications. The unique mechanism obtained through our long research has drastically reduced pressure pulsation. Unload and variable pressure controls are made possible remotely in addition to load-sensing and pressure constant. In addition, horsepower control is available.
The pump’s rotating groups are based upon the proven design of the K3V and K3VG pumps. K3VL pumps are available in nominal displacements ranging from 1.71 to 12.20 in³/rev (28 to 200 cc/rev) with various pressure, flow, and combination control options.
BENEFITS:
1, High Pump Efficiency, High overall efficiency (> 90% peak)
2, High Reliavility
3, High Power Density(High power to weight ratio.)
4, Low pulsation and noise levels(Low Noise.)
5, Excellent reliability and very long service life.
6, Variety of optional through drives.
7, Numerous control options.
8, American (SAE) or European (ISO) mounting and shaft
9, Exceptional self-priming capabilities.
10, Continuous pressure rating of 4600 psi (320 bar), 3625 psi (250 bar) for K3VL60.
11, Quick control response.
Applicable models：
K3VL200/B-1ARSS-L1, K3VL200/B-1BRKM-L0/1-H2, K3VL200/B-1BRSS-L0/1-H2, K3VL200/B-10RKS-P0/1-H1, K3VL200/B-1CRKS-L0, K3VL200/B-1CRSM-L0, K3VL200/B-1DRKS-PV, K3VL200/B-1CRKS-L0, K3VL200/B-1CRSM-L0, K3VL200/B-1DRKS-PV, K3VL200/B-1DRFM-L1, K3VL200/B-1DRSS-P0/1-H1, K3VL200/B-1ELFM-L0/1-E0, K3VL200/B-1ERFM-L1/1-H5, K3VL200/B-1ERKM-P0/1-H5, K3VL200/B-1NRSM-L1/1-H5, K3VL200/B-1NLKM-L0, K3VL200/B-1NLSM-L0, K3VL200/B-1NLSM-L0/1-E0, K3VL200/B-1NRKM-L1, K3VL200/B-1NRSS-L0, K3VL200/B-1NRKM-P0, K3VL200/B-1NRSS-L0/1-E0, K3VL200/B-1NRSS-L0/1-H1, K3VL200/B-1NRSS-PN24D, K3VL200/B-1ERFM-L1/1-H5+K3VL200/B-1NRSM-L1/1-H5; K3VL140/B-1BBLSM-P0 + K3VL45/B-1NLSM-P0, K3VL140/B-1DLSM-L0/1-H3 + K3VL112/B-1BBLSS-P0/1-H3 + K3VL45/B-1NLSS-P0, K3VL140/B-1DLSM-L0/1-E0 + K3VL140/B-1NLSM-L0, K3VL140/B-1DRKS-L1/1-00 + K3VL140/B-1NRSS-L1, K3VL140/B-1DRSM-P0 + K3VL112/B-1CRSM-P0 + K3VL80/B-10RSM-P0, K3VL140/B-1DRSM-P0 + K3VL112/B-10RSM-P0, K3VL140/B-10RKS-P0, K3VL140/B-10RMM-P0/1-H1, K3VL140/B-10RMM-P0, K3VL140/B-10RSS-P0/1-H2, K3VL140/B-1ALKM-P0, K3VL140/B-1ALSM-L1, K3VL140/B-1ARMM-P0/1-E0, K3VL140/B-1ARSM-P0/1-E0, K3VL140/B-1ARSS-L0/1-H1, K3VL140/B-1BLSM-L0, K3VL140/B-1BLSM-L1/1-Q0, K3VL140/B-1BLXM-PM24D, K3VL140/B-1BRCS-PV, K3VL140/B-1CLMM-L1, K3VL140/B-1CLSM-L0/1-H1, K3VL140/B-1CRKS-L0/1-H1, K3VL140/B-1CRSS-P0, K3VL140 B 1DLKS L1, K3VL140/B-1DLSM-L0/1-E0, K3VL140/B-1DLSM-L1, K3VL140/B-1DRKS-L1/1-00, K3VL140/B-1DRMM-P0, K3VL140/B-1NLCM-L0, K3VL140/B-1NLCM-L1/1-H4, K3VL140/B-1NLMM-L0, K3VL140/B-1NLSM-L1, K3VL140/B-1NLSS-P0/1-E0, K3VL140/B-1NRKM-L0, K3VL140/B-1NRMM-L0/1-H1, K3VL140/B-1NRMM-P0, K3VL140/B-1NRMM-PM24D, K3VL140/B-1NRMM-PV/1-E0, K3VL140/B-1NRSS-L0/1-E0, K3VL112/B-1CRWM-L0 + K3VL80/B-10RSM-L0, K3VL112/B-1CRWM-L0/1-M1 + K3VL80/B-10RSM-L0, K3VL112/B-1DLSS-PN24D + K3VL112/B-1BBLSS-L0 + K3VL45/B-1ALSM-P0, K3VL112/B-1BBRWM-L0 + K3VL45/B-1BRSM-L0, K3VL112/B-1DRWM-L0 + K3VL112/B-1NRSM-L0, K3VL112/B-1BBRWM L0 + K3VL45/B-1NRSM-L0, K3VL112/B-1BBRSS-P0 + K3VL45/B-1BBRSS-P0 + K3VL45/B-10RSS-P0, K3VL112/B-1CLSM-L0/1-M4 + K3VL80/B-1NLSM-L0, K3VL112/B-1CLWM-L0/1-H1 + K3VL80/B-1NLSM-L0, K3VL112/B-1CRKM-P0/1-M2 + K3VL80/B-10RSM-P0, K3VL112/K3VL140, K3VL112/B-10RCM-L1, K3VL112/B-10RKS-P0/1-H4, K3VL112/B-10RWM-L1, K3VL112/B-1ALSM-P0, K3VL112/B-1ALWS-L0, K3VL112/B-1ARMM-L1/1-S6, K3VL112/B-1ARSM-L0/1-M1, K3VL112/B-1BBRMM-L0, K3VL112/B-1BBRWM-L0, K3VL112/B-1BLSM-P0, K3VL112/B-1BRKM-L0/1-H1, K3VL112/B-1BRKS-P0/1-M1, K3VL112/B-1BRMM-L0, K3VL112/B-1BRMM-L1/1-H1, K3VL112/B-1BRSS-L0, K3VL112/B-1BRWS-L0, K3VL112/B-1C4LSM-L1, K3VL112/B-1CLCM-P0/1-E0, K3VL112/B-1CLCM-P0/1-H1, K3VL112/B-1CLCS L0, K3VL112/B-1CLSM-P0, K3VL112/B-1CLWM-L0/1-H1, K3VL112/B-1CLWS-L0, K3VL112/B-1CRCM-P0/1-E0, K3VL112/B-1CRCM-P0/1-H1, K3VL112/B-1CRKS-L1, K3VL112-B-1CRSM-L0_1-H, K3VL112/B-1DRSM-P0, K3VL112/B-1NLSM-L0, K3VL112 B 1NLSS L1, K3VL112/B-1NLWM-L0, K3VL112/B-1NLXS-L1, K3VL112/B-1NRCS-L1/1-H1, K3VL112/B-1NRCS-L1, K3VL112/B-1NRKM-L0/1-E0, K3VL112/B-1NRKM-L0/1-H1, K3VL112/B-1NRSM-L0/1-H1, K3VL112/B-1NRSS-L0-/1-M1, K3VL112/B-1NRSS-L0, K3VL112/B-1NRSS-PN24D, K3VL112/B-1NRWM-L0, K3VL112/B-1RLCM-L1, K3VL112/B-1RLSM-P0, K3VL112/B-1RLXS-L1, K3VL80/B-10RKM-L0, K3VL80/B-10RKS-L1/1-L5, K3VL80/B-10RMM-P0/1-H1, K3VL80/B-10RSM-L0, K3VL80/B-10RSM-LN24D, K3VL80/B-10RSM-P0/1-E0, K3VL80/B-10RSS-L0/1-L1, K3VL80/B-1ALSM-PN24D, K3VL80/B-1ALSS-L0/1-H2, K3VL80/B-1ALSS-P0/1-E0, K3VL80/B-1ARMM-P0/1-L3, K3VL80/B-1ARSS-P0/1-L1, K3VL80/B-1BBLSM-PM 24VDC, K3VL80/B-1BBLSM-P0, K3VL80/B-1BBRSM-P0, K3VL80/B-1BBRSS-L1, K3VL80/B-1BLSS-L0/1-H1, K3VL80/B-1BLSS-L1, K3VL80/B-1BLSS-P0/1-Q0, K3VL80/B-1BRMM-L1, K3VL80/B-1BRMM-LM24D, K3VL80/B-1BRMM-P0/1-M4, K3VL80/B-1BRSM-L1/1-L1, K3VL80/B-1CLSM-P0/1-E0, K3VL80/B-1CLSM-P0/1-H1, K3VL80/B-1CLSS-L0, K3VL80/B-1CRMM-P0/1-H1, K3VL80/B-1CRSM-P0/1-E0, K3VL80/B-1CRSM-P0/1-H1, K3VL80/B-1NLKS-P0, K3VL80/B-1NLMM-L0, K3VL80/B-1NLSM-L0, K3VL80/B-1NLSS-L0, K3VL80/B-1NRKM-P0, K3VL80/B-1NRKM-P0/1-H1, K3VL80/B-1NRMM-P0, K3VL80/B-1NRMM-L0/1-M2, K3VL80/B-1NRSM-L1, K3VL80/B-1NRSS-P0/1-E0, K3VL80/B-1NRSS-L0/1-M1, K3VL80/B-1NRSS-L0, K3VL80/B-1NRSS-PN24D, K3VL80/B-1RLSM-L0, K3VL80/B-1RRKS-P0/1-H1. K3VL80/B-1RRSM-L0, K3VL80/B-1RRSS-P0/1-H1, K3VL80/B-1BBLSM-P0 + K3VL45/B-1NLSM-L0, K3VL80/B-1BBLSS-L1 + K3VL45/B-1ALSS-L1, K3VL80/B-1CRMM-L0/1-H1 + K3VL80/B-1NRSM-L0/1-H1, K3VL45/B-10RKM-L0, K3VL45/B-10RKM-P0/1-H1, K3VL45/B-10RKM-PV/1-L, K3VL45/B-10RMM-P0, K3VL45/B-10RSM-P0/1-E0, K3VL45/B-10RSM-P0. K3VL45/B-10RSS-P0, K3VL45/B-10RTM-P0, K3VL45/B-1ALSM-PM 24VDC,K3VL45/B-1ALSM-P0, K3VL45/B-1ALSS-L0/1-H4, K3VL45/B-1ARKM-P0/1-E0, K3VL45/B-1ARMM-L0/1-H1, K3VL45/B-1ARSM-P0/1-E0, K3VL45/B-1ARSM-P0, K3VL45/B-1ARSS-L1/1-H1, K3VL45/B-1BRSM-L0, K3VL45/B-1BBLSM-PM 24VDC, K3VL45/B-1BBLSM-P0/1-E0, K3VL45/B-1BBLSM-P0/1-H1, K3VL45/B-1BBLTM-P0, K3VL45/B-1BBRKM-P0, K3VL45/B-1BBRSM-P0/1-E0, K3VL45/B-1BBRSM-P0/1-H1, K3VL45/B-1BBRSS-L0, K3VL45/B-1BBRTM-P0, K3VL45/B-1BRMM-P0/1-H1, K3VL45/B-1NLSM-L0, K3VL45/B-1NLSM-P0/1-E0, K3VL45/B-1NLSS-P0, K3VL45/B-1NLTS-P0, K3VL45/B-1NRKM-L1, K3VL45/B-1NRKM-P0/1-H1, K3VL45/B-1NRMM-P0, K3VL45/B-1NRMM-L0/1-H1, K3VL45/B-1NRSM-L0, K3VL45/B-1NRSM-L0/1-H1, K3VL45/B-1NRSS-L0/1-E0, K3VL45/B-1NRSS-L0/1-M1, K3VL45/B-1NRSS-L0, K3VL45/B-1NRSS-PN24D, K3VL45/B-1RLTM-L0, K3VL45/B-1RRTS-L0, K3VL45/B-1BBRSM-L1/1-M2 + K3VL45/B-10RKM-L1/1-M2, K3VL45/B-1BBRSM-P0 + K3VL45/B-10RSM-P0, K3VL28/C-1ARSM-L0, K3VL28/C-1ARSM-P0, K3VL28/C-1NRSM-L0, K3VL28/C-1NRSM-P0, K3VL28/C-1BRSM-PR24D, K3VL28/C-1NRKM-L0, K3VL28/C-1NRKM-P0, K3VL28/C-1NRKS-L0,K3VL28/C-1NRKS-P0
